Spreadsheet View

The Directional Well Module can view and modify directional survey data. This tool can be used to compare multiple directional surveys in a single well, which are commonly Actual and Proposed directional surveys.

To open the Spreadsheet tool, select the button on the top of the Directional Well Module.

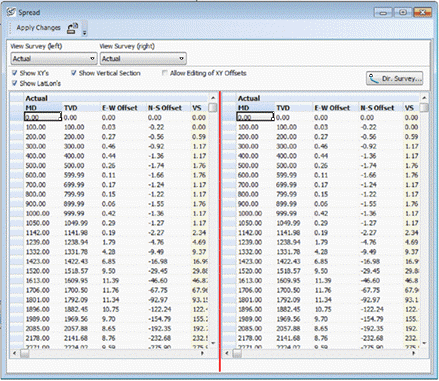

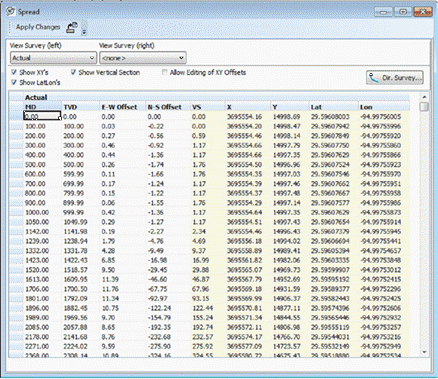

The Directional Module's spreadsheet tool with a single survey (left) and with two surveys (right)

View Survey	Selects between multiple directional surveys. This dropdown selects the left set of surveys, and is set to "Actual" by default.
View Survey Right	Selects the directional survey set to display on the right.
Show XY's/Show Lat Lon's	These two options enable the XY and LatLon surface location of each survey point.
Show Vertical Section	Enables the vertical section column, which is a horizontal measurement away from the surface location calculated along a compass azimuth.
Allow Editing of XY Offsets	Allows the XY offsets in the project to change.
Dir. Survey	Opens the directional survey data tool.
