Select Wells With Tests in a Zone
This well selection option will examine a selected zone interval for the occurrence or one or more data criteria consisting of IP or production tests, formation tests (DST), perfed intervals, cored intervals, and shows.

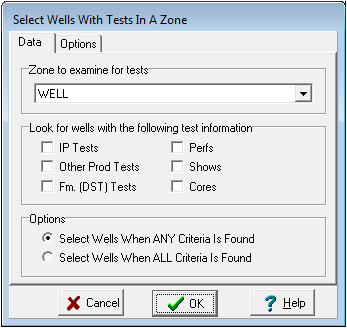

Data tab
Zone to examine for tests - This option searches for wells that have tests inside the top and base set by the the selected zone's interval definition.
Look for wells with the following test information
Select the well search criteria by available test information in each well. Tests include the following:
Options
Select Wells when ANY Criteria Is Found - This option returns wells with at least one of the selected tests falls within the zone interval. This is a more lax criteria, and will return more wells.
Select Wells When ALL Criteria Is Found - This option returns wells only when a well as ALL selected tests within the zone interval. This is a more stringent test criteria, and will return fewer wells.

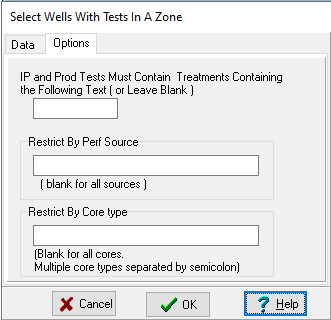

Options tab
IP and Prod Tests Must Contain Treatments Containing the Following Text — add an additional search criteria in the "Treatments" section of tests.
Restrict By Perf Source — restrict the search to only the wells that meet the Perf Source.
Restrict by Core type — restrict the search to only the wells that have the input core type. To input multiple core types, separate the types with a semi-colon. For example, SDWL; CONV.
